week 12&13 spring 2018

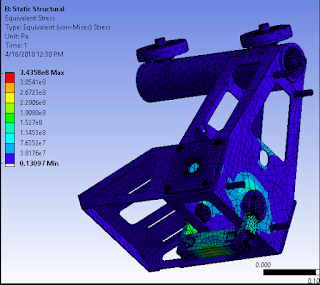

A few FEA are conducted in these two weeks. These FEA tests focused on the load arm reaction when applied real life situation. a 10 Kn load is added on the bottom of the load arm. The material I choose have the maximum yield strength 3.5*10^8 Pa. For the top structure, a load of 5Kn is added. the force is caused to the turning at maximum speed.



Comments

Post a Comment

Popular posts from this blog

Week 3 Spring 2018

This week, we have discussed to reduce our cost of the material, labor cost, and etc. The final decision is that to switch from steel to plywood. However, there are things that we need to focus on choosing the correct plywood. If the plywood we use has avoids, there will be problems when we do laser cutting. Therefore, finding the supplier and get the correct plywood is essential to this semester.
Read more

week 5&6 spring 2018

During these two weeks , I have redone this bill of material. Since the beginning of this semester, I start to realize that money is one thing that stops our project to go further. My main task is to find expensive components on the BOM that can be replaced by some cheaper parts. One thing I found that can be replaced is the wheel. Originally, the wheels will cost around $300. But, one Mcmaster carr I found a wheel that will only cost $12. Although, this wheel doesn't suit every criteria with our design. But compare to the huge saving. I have decide to let my team know that this is an option that can help us save a lot of time in the future.
