week 7 report

During this week, what I had been focusing on is the general CAD design. There are few obstacles need to be solved. First, dimension is one important part of this whole project, set a detailed dimension can be very helpful in future design. Currently, I have trouble on thickness of the main wheel and motor. other dimension need to confirm with the team is the connection object, which locate between shaft and support plate (for motor and switch wheel). Second, I need to get the new edition Solidworks, so that I can use both school's computer and make edit on my home laptop.
Below is the review of my current design.
 3-d view.PNG

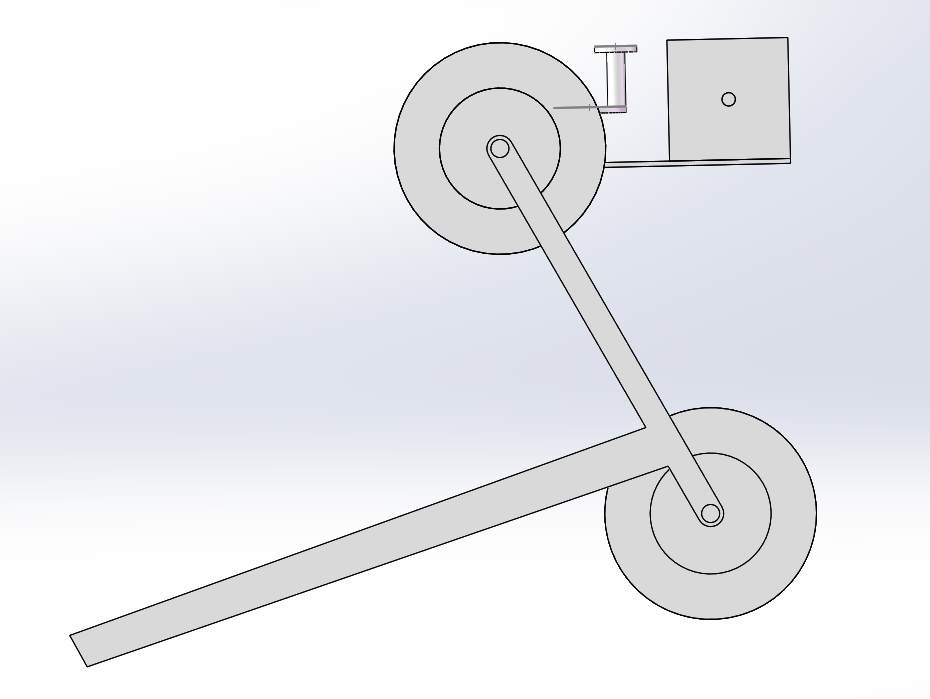

bogie front view.PNG
